After hours of attempting, I finally integrated OpenCV 4.8.0 to Android Studio Giraffe with the Kotlin project.
I’ll skip the steps for downloading AS and OpenCV. Just remember to download the Android version of OpenCV and extract the zipped file to whatever place you want.

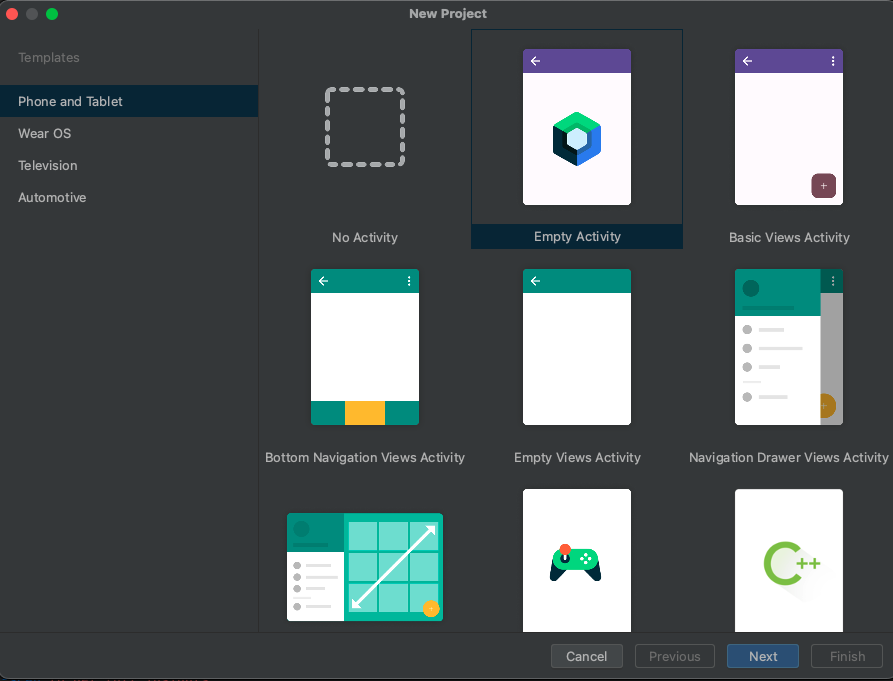

Create a new “Empty Activity” project
I want to use Compose to develop the UI of the app. Currently, I only learned this from Android Studio’s official tutorial. So just create an “Empty Activity”.
File→New→New Project→Empty Activity→Next

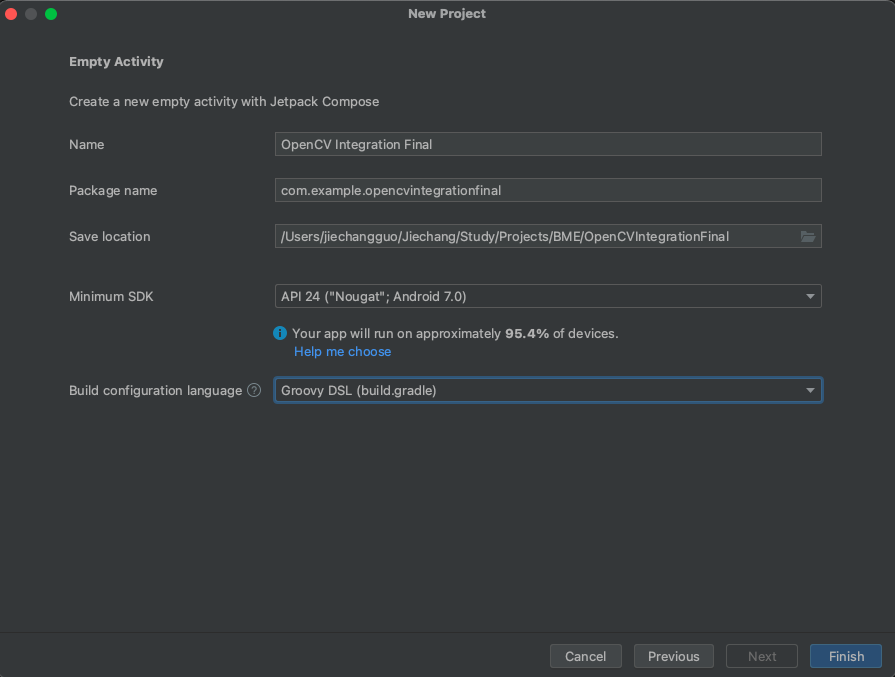

Remember to change the “Build configuration Language” from default to “Groovy DSL(build.gradle)”
Then click “Finish”
Import OpenCV SDK as a new module

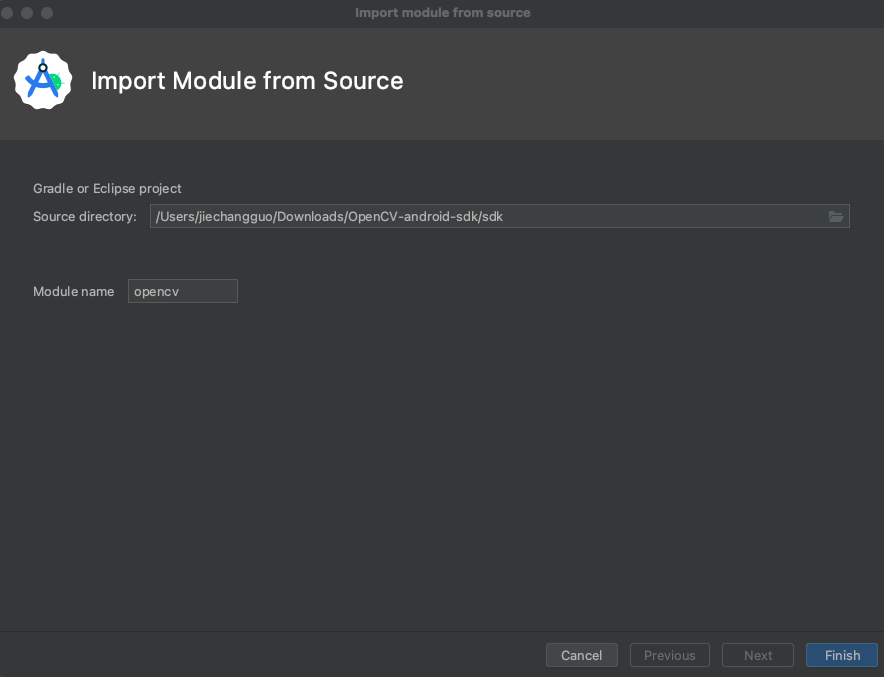

File→New→Import Module→
Select the path to the place where you extracted the OpenCV SDK and change the module name to “OpenCV”
Then click Finish
Now, we will start our troubleshooting journey.
Troubleshooting 1: Namespace not specified
1
2
3
Namespace not specified. Specify a namespace in the module's build file. See https://d.android.com/r/tools/upgrade-assistant/set-namespace for information about setting the namespace.
If you've specified the package attribute in the source AndroidManifest.xml, you can use the AGP Upgrade Assistant to migrate to the namespace value in the build file. Refer to https://d.android.com/r/tools/upgrade-assistant/agp-upgrade-assistant for general information about using the AGP Upgrade Assistant.
Please check this link for more information related to this issue https://github.com/opencv/opencv/pull/23447
To fix this issue

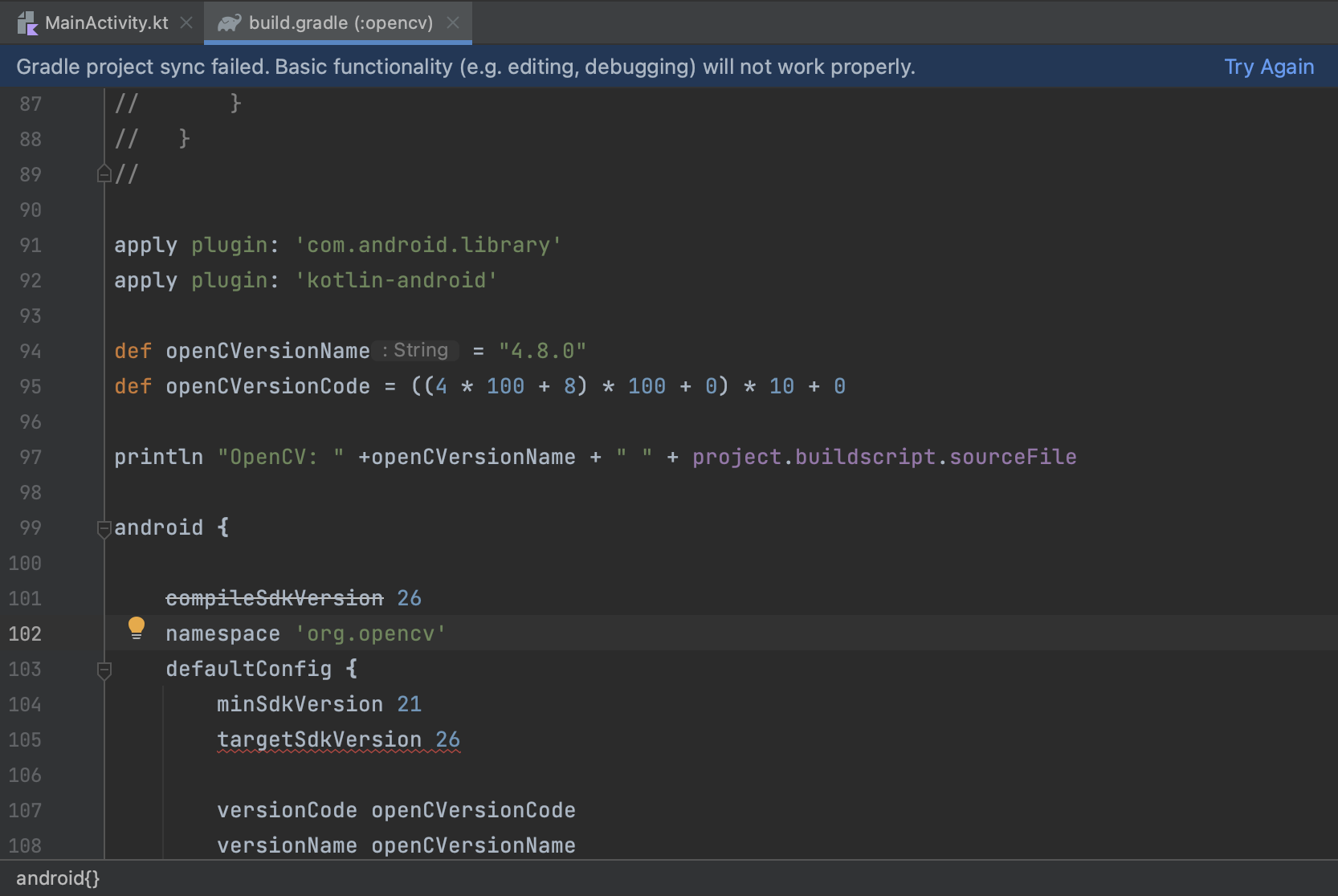

Change the project view to “Project” where you can find the imported “opencv” module. Inside the “opencv” folder, open “build.gradle”, add “namespace ‘org.opencv’ to the file.
Then sync the gradle by click Try Again on the top of this gradle file.
Then this problem should be fix. BUILD SUCCESSFUL( which is obviously not yet).
Add opencv as dependency as the app

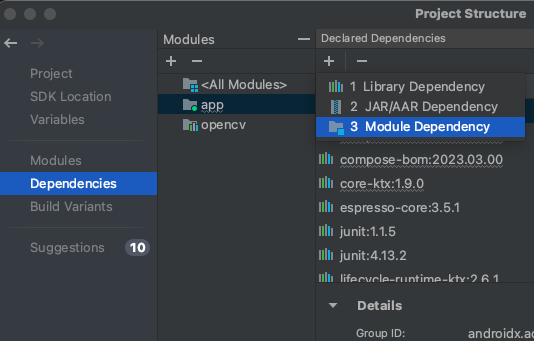

File→Project Structure→Dependencies(tab)→app→+→3 Module Dependency→

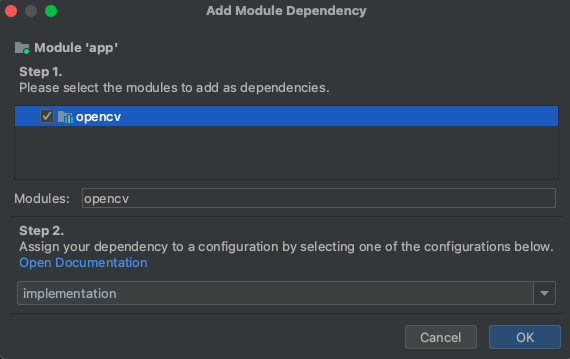

select opencv module as dependencies→OK→Apply
Run the app and lets fix some compile error of OpenCV
Troubleshooting2: Execution failed for task ‘:opencv:compileDebugKotlin’
1
2
3
Execution failed for task ':opencv:compileDebugKotlin'.
> 'compileDebugJavaWithJavac' task (current target is 1.8) and 'compileDebugKotlin' task (current target is 17) jvm target compatibility should be set to the same Java version.
Consider using JVM toolchain: https://kotl.in/gradle/jvm/toolchain

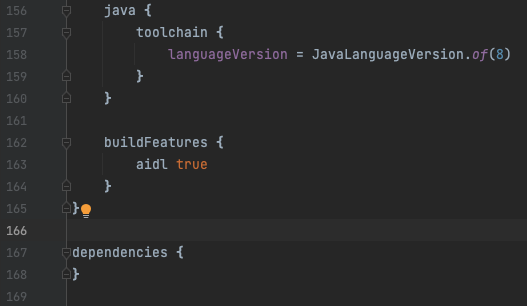

Open build.gradle of opencv again
Add the following code to the end of the android{} section
1
2
3
4
5
6
7
8
9
java {
toolchain {
languageVersion = JavaLanguageVersion.of(8)
}
}
buildFeatures {
aidl true
}
And click Sync Now. BUILD SUCCESSFUL (not yet)
Run the app again.
Troubleshooting 3: Cannot find symbol
1
2
3
4
5
error: cannot find symbol
import org.opencv.BuildConfig;
^
symbol: class BuildConfig
location: package org.opencv
Add one more buildFeature
1
2
3
4
buildFeatures **{**
aidl true
buildConfig true
**}**
Now the app should be able to run.
Congrats!
Test OpenCV is ready to use
import opencv dependencies, add the OpenCVLoader.initDebug() in the onCreate fun.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import org.opencv.android.OpenCVLoader
import org.opencv.core.Core
class MainActivity : ComponentActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
if(OpenCVLoader.initDebug())
{
Log.d("OPENCV","Opencv init")
println("opencv version: ${Core.VERSION}")
}
else
{
Log.d("OPENCV","Opencv init failed")
}
setContent {
OpenCVIntegrationFinalTheme {
// A surface container using the 'background' color from the theme
Surface(
modifier = Modifier.fillMaxSize(),
color = MaterialTheme.colorScheme.background
) {
Greeting("Android")
}
}
}
}
}

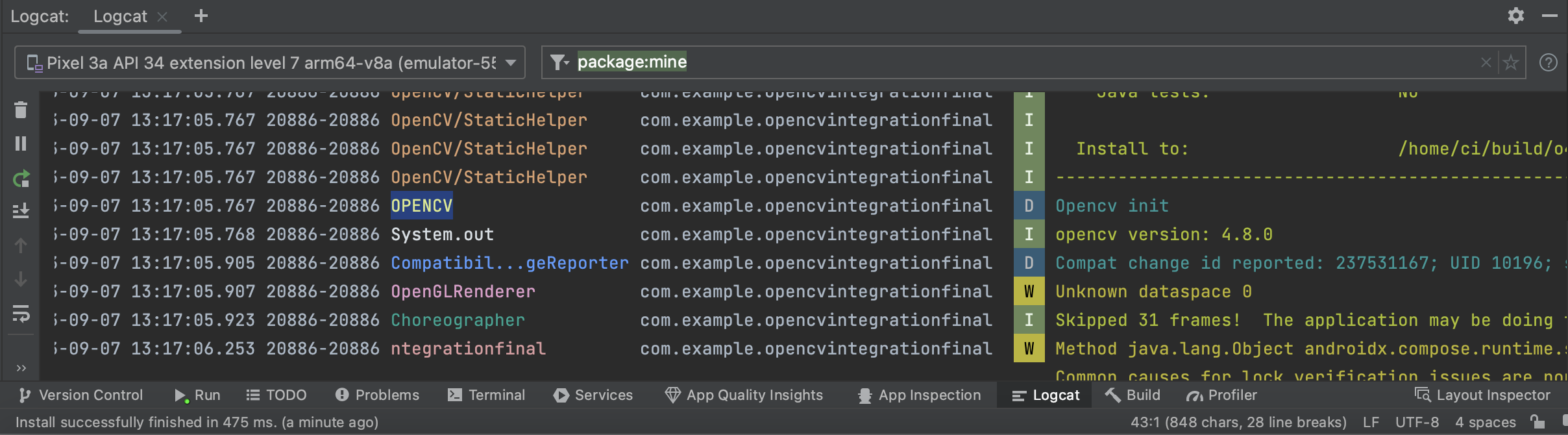

We can check the logcat
It’s working! Finally!
Reference: https://medium.com/@ankitsachan/android-studio-kotlin-open-cv-16d75f8d9969 https://forum.opencv.org/t/an-exercise-in-frustration/12964/3?u=ankit_sachan&source=post_page—–16d75f8d9969——————————–
